NACHO 8 SWITCH SYSTEM

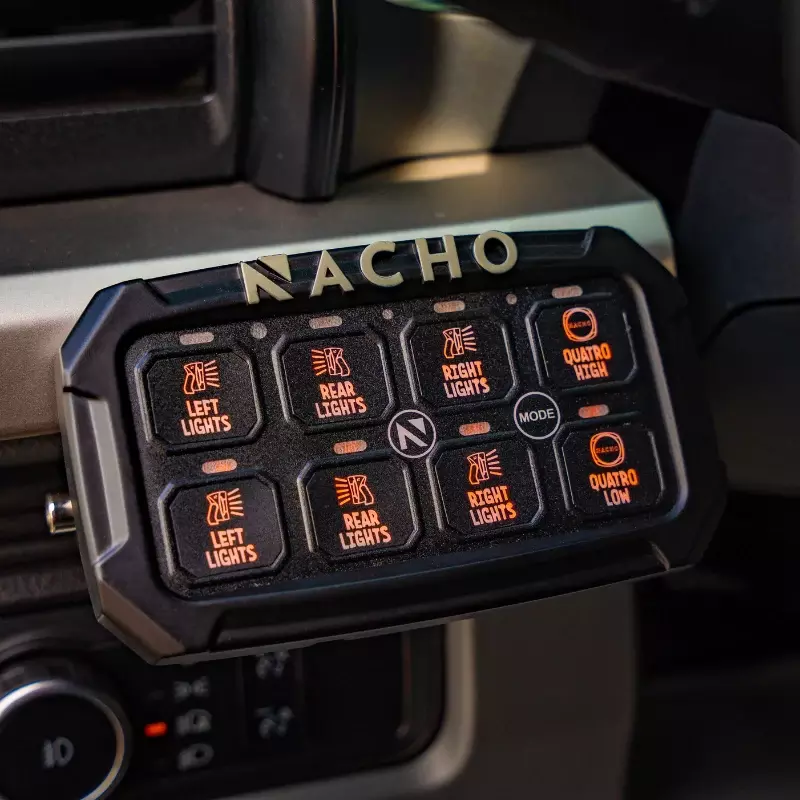

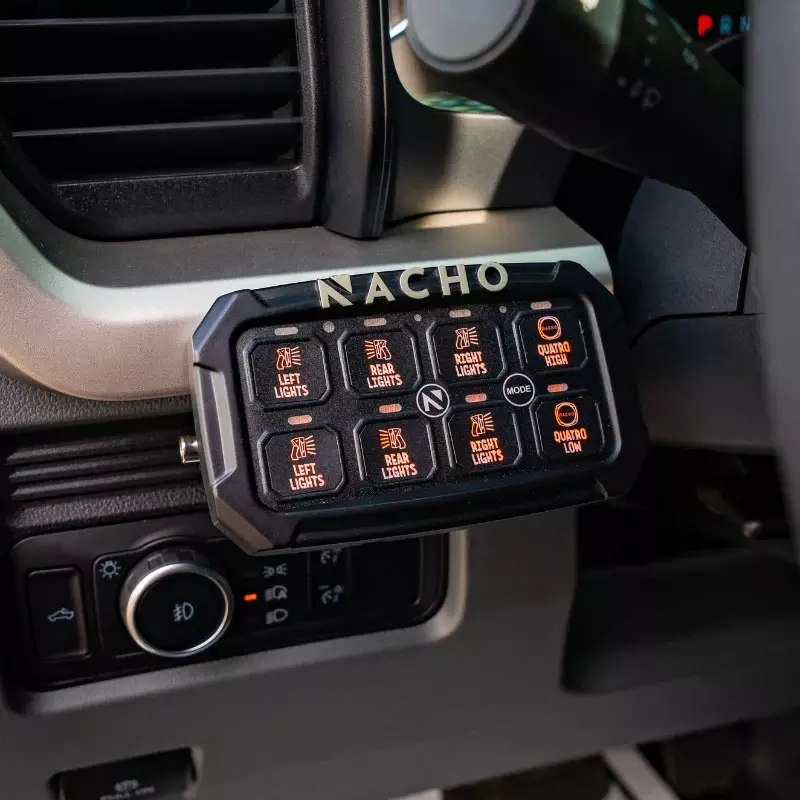

The NACHO 8-Way Switch Panel (NAC11SW) is a premium auxiliary controller designed to simplify and enhance the management of vehicle accessories. Featuring a 60-amp solid-state system, it provides reliable control for up to eight circuits, making it ideal for lighting, compressors, fridges, and more. A key advantage of the NAC11SW is its seamless compatibility with Nacho Offroad Technology-+s driving light range. Nacho lights use multiple input triggers to activate different beam patterns and output modes. This switch panel offers a clean, intuitive in-cabin solution to control those functions, eliminating the need for complex wiring or multiple individual switches. Designed for modern vehicles, the NAC11SW consolidates accessory control into a single, sleek interface, solving the common challenge of limited dashboard space. Programmable switch behaviour and customisable backlighting allow users to tailor the system to their preferences. Supporting both 12V and 24V systems, the NAC11SW suits a wide range of applications. With integrated circuit protection and solid-state reliability, it delivers dependable performance in demanding conditions.

SWITCH PANEL

FEATURES:

• 8 Programmable Switches Control up to eight accessories independently with fully customisable switch modes
• Nacho Light Integration: Easily manage Nacho driving light beam patterns and output settings from one panel.
• Mobile App Control: Configure switch functions, lighting behaviour, and system settings directly from your smartphone.

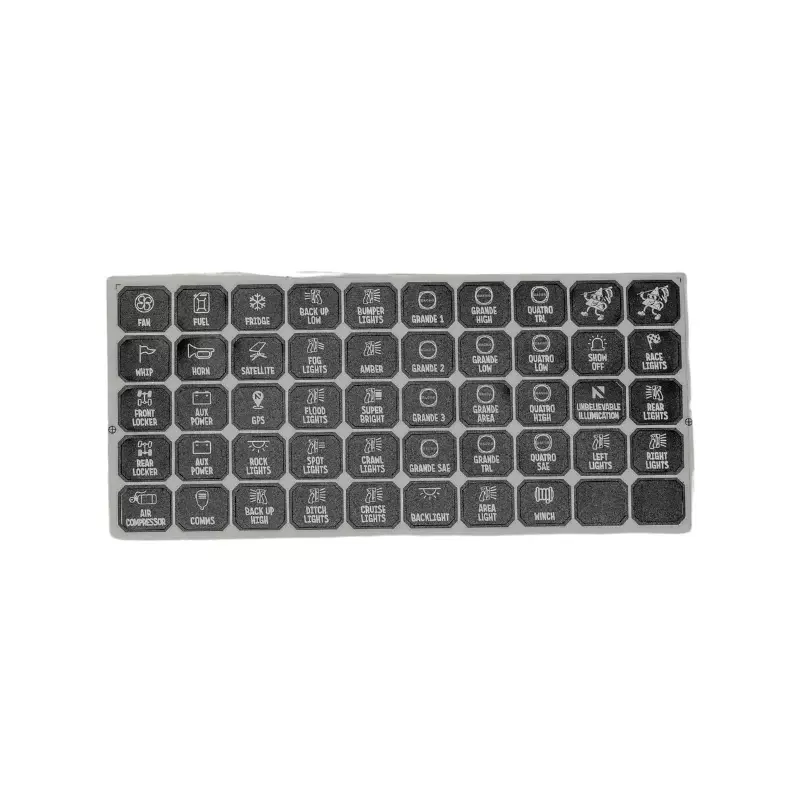

• Custom Backlighting & Icons Personalise switch colours and labels for improved visibility and a tailored in-cabin look
• Programmable switch functions: Select between ON/OFF, momentary, or Pulse for all outputs.

Backlight Colour and Brightness

Adjust backlight colour directly via touchpad or the switch panel app (available for Apple and Android devices). Adaptive panel brightness is controlled automatically and adjusts based on the environment – the panel has a greater level of illumination during night/low light conditions. Note: when wired for constant power and not ignition or acc, the panel will remain illuminated when the vehicle is not in use.

HARDWARE

FEATURES:

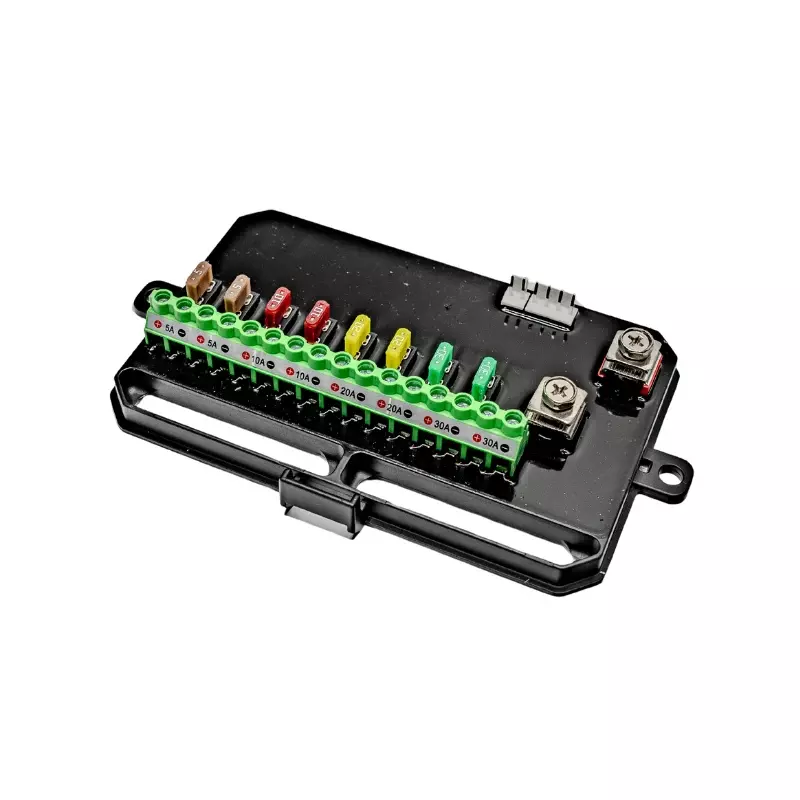

• 8 fuse-protected channels: Power multiple accessories safely while maintaining clean, organised wiring across your entire setup.
• Inbuilt pulse function: A variable speed pulse function is inbuilt. Perfect for fleet beacon lighting or off-road applications.
• 30A Per Channel / 60A Total Capacity: Supports high and low current devices simultaneously. Supports up to 30A per channel.
• 4 Trigger inputs: Switch up to four channels using vehicle input triggers. High beam, reverse, acc., or any 12V input
• Selectable switch function: Select between ON/OFF, momentary, or pulse
• Single High-Capacity Power Input: Streamlines installation by using one main feed to safely distribute power across multiple accessory circuits.
