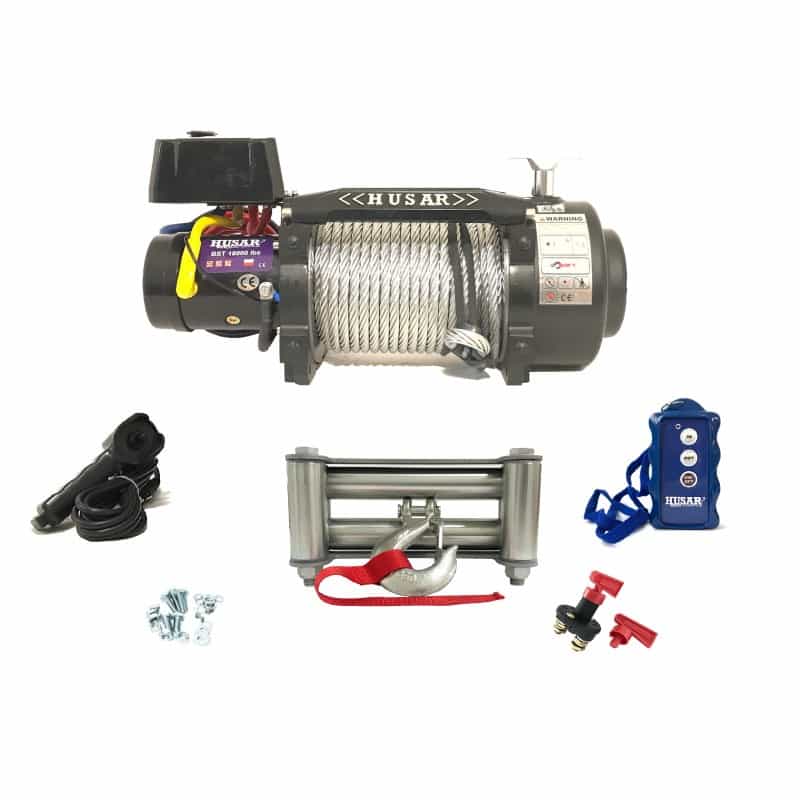

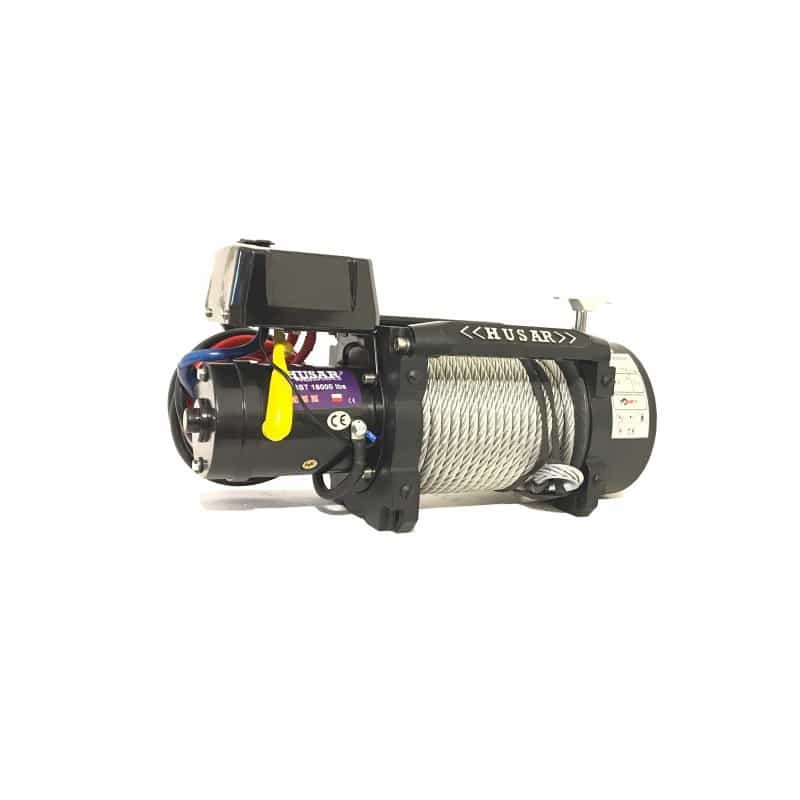

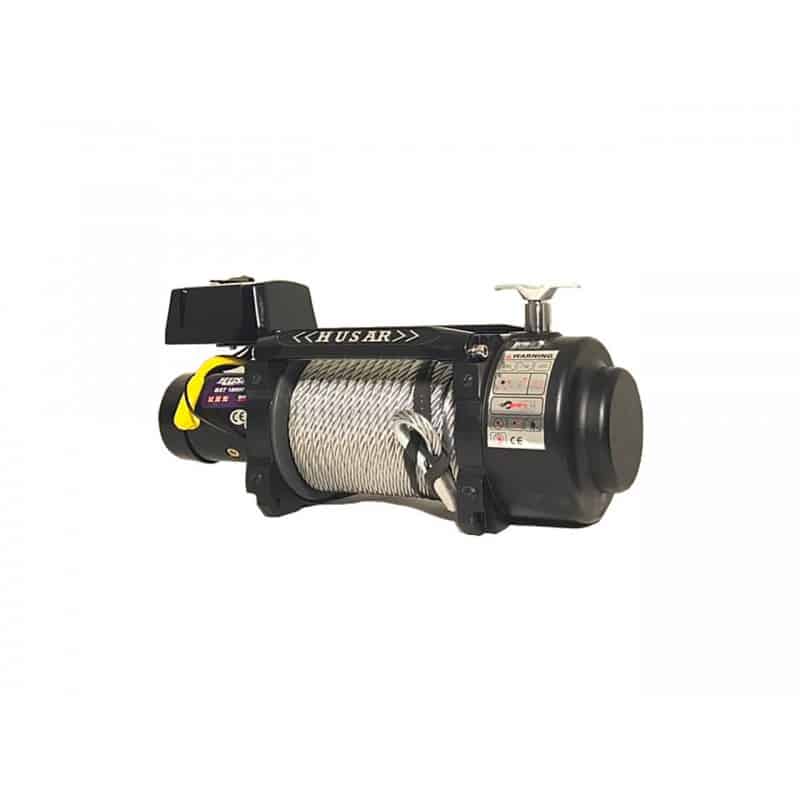

Εργάτης Husar BST 18000lbs 12V
€980.00
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Specification
Overview
Processor
Display
RAM
Storage
Video Card
Connectivity
Features
Battery
General
Description
| BST S 18000lbs | Technical specifications | ||
| Pull capacity(single line) | 18000lbs / 8165 kg | ||
| Motor 12V / 24V | 5,5 Hp / 4,2 kW; 7,5 Hp / 5,5 kW | ||
| Controls | Wired / wireless remote control | ||
| Gear | 3-stage planetary | ||
| Gear ratio | 450:1 | ||
| Brake | Automatic | ||
| Rope | 25,5m x Ø 11 mm | ||
| Fairlead | 4-ways rollers fairlead | ||
| Net weight | 60 kg | ||
| Mounting bolt pattern | 254mm x 114,3mm 4-M12 | ||
| Dimensions | (L x W x H) 593mm × 226mm × 294mm | ||
| Line speed and motor current (first layer) | ||||||
| Line pull | Lbs | 0 | 1000 | 12000 | 15000 | 18000 |
| Kgs | 0 | 4536 | 5443 | 6804 | 8165 | |
| Line speed | M/min 12V | 4,6 | 1,7 | 1,9 | 1,37 | 1,2 |
| M/min 24V | 4,9 | 2,2 | 2,1 | 1,8 | 1,7 | |
| Motor current | Amps 12V | 90 | 285 | 260 | 340 | 410 |
| Amps 24V | 48 | 140 | 145 | 191 | 235 | |
| Line pull and cable capacity | ||||||
| Layer of cable | 1 | 2 | 3 | 4 | ||
| Rated line pull per layer | Lbs | 18000 | 15000 | 12000 | 10100 | |
| Kgs | 8165 | 6804 | 5443 | 4581 | ||
| Cable capacity per layer | M | 6 | 13 | 21 | 28,5 | |
